Overview
What is Lasertec?
Lasertec is a multi-layer laminated plastic designed specifically for laser engraving. A UV-stable acrylic cap layer sits on a contrast-coloured base layer, so engraving cleanly reveals the colour underneath.
Lasertec — Laminated plastic for laser engraving, acrylic cap layer

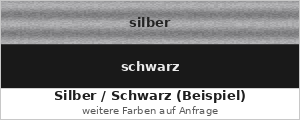

Color options
Lasertec — available colors
Properties
Properties & processing
Construction and principle
Lasertec is based on acrylic glass pressed into a multi-layer laminate. During engraving, the laser removes the top colour layer and exposes the contrasting base colour beneath it, so no additional fill colour or inlay is required.
Lasertec sheets can be engraved, laser-cut and milled. Its properties make it suitable for both indoor and outdoor use.
Specifications
Format, thickness & engraving depth
| Format | 1220 x 610 mm, 610 x 610 mm |
|---|---|
| Thickness | 0.7 mm, 1.5 mm, (2.3 mm), (3.1 mm) |
| Engraving depth | 0.30 mm, 0.50 mm (gold, silver) |
Typical properties
- Laminate developed for laser engraving
- UV-stable acrylic cap layer
- High scratch resistance
- Largely resistant to acids
- Ageing resistance tested
Typical industries
- Signage and labelling technology
- Nameplate manufacturing
- Advertising and display technology
- Machine control panels
- Awards and presentation items
Applications
Application examples
Nameplates and machine identification
Control panel and switchgear labelling
Signage and wayfinding panels
Engraved award and presentation plaques
Data sheets
Downloads for Lasertec
Technical data sheet
Lasertec – Technical data sheetPDF
Material information
What is Lasertec? Material portraitPDF
Related materials
Request a quote for Lasertec
A drawing or sample is enough. We calculate transparently and advise openly whether this material is the best fit for your application.
